Технические параметры

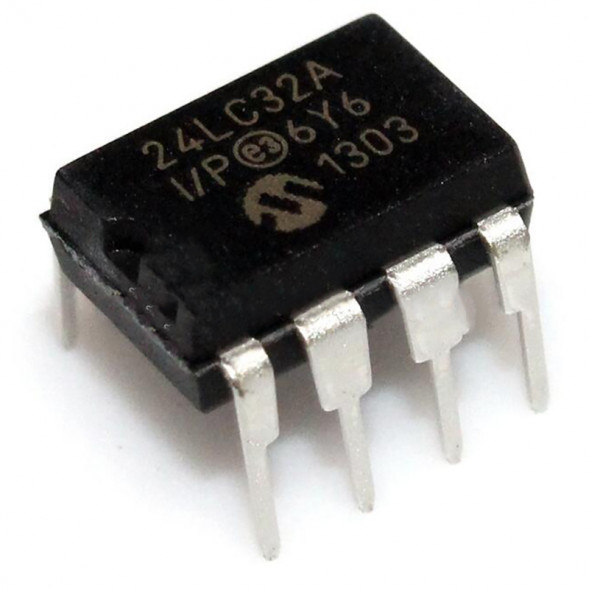

PIC24LC32A-I/P Микросхема памяти (DIP-8)
>td >Operating Supply Current>td >Max. Access Time (ns)>td >Number of Bits per Word (bit)
| Access Time | 900 ns |
| Brand | Microchip Technology |
| Data Retention | 200 Year |
| Factory Pack Quantity | 60 |
| Height | 3.3 mm |
| Interface Type | Serial, 2-Wire, I2C |
| Length | 9.4 mm |
| Manufacturer | Microchip |
| Maximum Clock Frequency | 400 kHz |
| Maximum Operating Temperature | +70 C |
| Memory Size | 32 kbit |
| Minimum Operating Temperature | 0 C |
| Mounting Style | |
| 3 mA | |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Organization | 4 k x 8 |
| Package / Case | PDIP-8 |
| Packaging | Bulk |
| Product Category | EEPROM |
| RoHS | Details |
| Supply Current - Max | 3 mA |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.032805 oz |
| Width | 6.35 mm |
| Automotive | Yes |
| Chip Density (bit) | 32K |
| Data Retention (Year) | 200(Min) |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Hardware Data Protection | Yes |
| Lead Shape | |
| 900 | |
| Maximum Operating Frequency (MHz) | 0.4 |
| Maximum Operating Supply Voltage (V) | 6 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Supply Voltage (V) | 2.5 |
| Minimum Operating Temperature (°C) | 0 |
| Mounting | |
| 8 | |
| Operating Current (mA) | 3 |
| Part Status | Active |
| PCB changed | 8 |
| Pin Count | 8 |
| PPAP | Yes |
| Programmability | Yes |
| Programming Voltage (V) | 2.5 to 6 |
| Standard Package Name | DIP |
| Supplier Package | PDIP |
| Supplier Temperature Grade | Commercial |
| Typical Operating Supply Voltage (V) | 3.3|5 |
| Вес, г | 1.56 |
